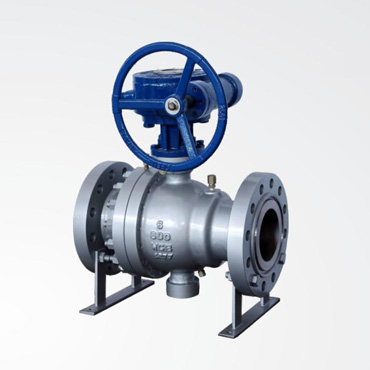

Casting trunnion mounted ball valve
Casting split body, full bore/reduced bore, trunnion mounted, double block and bleed, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA, spring loaded Seats, sealant injection, NACE MR-01-75, RTFE, Delrin, NYLON&DEVLON seat i...
- Category: Ball Valves
Casting split body, full bore/reduced bore, trunnion mounted, double block and bleed, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA, spring loaded Seats, sealant injection, NACE MR-01-75, RTFE, Delrin, NYLON&DEVLON seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D.
| Size： | NPS 2"~24" |
| Pressure Rating： | Class 150~900 |
| Material： |
WCB, LCB, CF8, CF8M, CF3, CF3M |
| Design & Manufacturing Standard： |
API 608, API 6D, BS 5351, ASME B16.34 |
| Face to Face： |
ASME B16.10, API 6D, BSEN 558 |
| End Connection： | ASME B16.5, BSEN 1092 |
|
Test and Inspection： |
ISO 5208, API 6D, BSEN 12266 |
|
Operation Method： |
Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator |
More details please contact Kelite Valves.
Last：
Casting floating ball valve
Next:

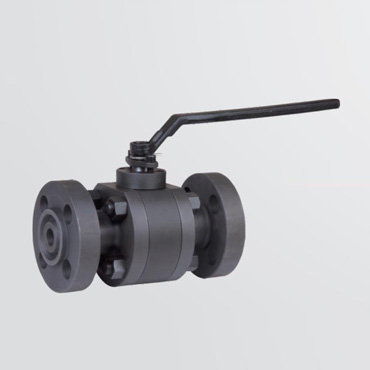

Forging floating ball valve
